Model: PV-7800

• Power Capacity: 5.8KW Hybrid Solar Inverter suitable for homes, shops, and small offices

• Advanced MPPT Technology: Maximizes solar energy production and improves charging efficiency

• Pure Sine Wave Output: Provides stable and clean power for sensitive appliances like TVs, computers, and refrigerators

• Hybrid System Support: Works with solar panels, batteries, utility grid, and generator for uninterrupted power supply

• Smart LCD Display: Shows real-time system information such as solar input, battery level, and load status

• Parallel Capability: Multiple inverters can be connected to increase system capacity

• Weight: Approx. 10–12 kg

• Series: Crown Elego Oyster

• Models: 10KW / 12KW / 15KW

• PV Capacity: 15000W – 22500W

• Type: Hybrid Solar Inverter

• Waveform: Pure Sine Wave

• MPPT: Dual / Triple MPPT

• Monitoring: WiFi Enabled

• Parallel Support: Yes (Expandable)

• Battery Support: Lithium & Lead-Acid

• Display: LCD / Touch Screen

• Features

  • IP66 waterproof and dustproof makes the inverter available for various working conditions
  • Max. PV input current per MPPT 26A (for 15kw)
  • Parallel operation up to 6 units Dual outputs for smart load management
  • Reserved communication port for BMS (RS485)
  • 150% unbalanced load support
  • User-adjustable charging current & voltage
  • Built-in BMS
  • Built-in wi-fi for mobile monitoring (app is available)
  • Self-consumption & feed-in to the grid

  Weight: Approx. 35–50 KG

•  Rated Output Power: - 10,000 W (10 kW) - 15,000 W (15 kW)
•  PV Input: - Max DC voltage: 720 VDC for both models. - MPPT voltage range: 150–850 VDC. - Number of MPPT trackers: 2 (A & B).
•  Grid-Tility Output (AC): - Nominal output voltage: 230 VAC (phase-neutral) / 400 VAC (phase-phase). - Output frequency: 50 Hz / 60 Hz. - Max. efficiency (DC-AC): >95%.
•  Battery Mode Output (AC): - Output waveform: Pure sine wave. - Efficiency (DC to AC): ~93% (10 kW) / 0.91 (15 kW).
•  Physical Specifications: - Dimensions: 247 × 500 × 650 mm (10 kW) / 255 × 660 × 650 mm (15 kW). - Weight: 50 kg.
• Protection & Environment: - IP66 protection. - Operating temperature: 0–1000 m altitude

• Model: PV-9600 (Crown Elego Star 6.5KW)

• Rated Power: 6.5KW

• Max PV Input: 9600W

• Type: Hybrid Solar Inverter (Grid + Battery + Solar)

• Waveform: Pure Sine Wave

• MPPT: Dual MPPT (2 Inputs)

• Monitoring: Built-in WiFi + Mobile App

• Parallel Support: Yes (Expandable system)

• Battery Support: Lithium & Lead-Acid

• Display: Touch Screen LCD

• Weight: Approx. 25–29 KG

• RATED POWER :  6500 VA / 6500 W Max. PV array power (W) 9600 Rated PV input voltage (V) 320 Number of independent MPPT inputs 2 PV input voltage range (V) 100 – 500 MPPT voltage range (V) 120 – 400 Start‑up voltage (V) 100 PV input current per MPPT (A) 17 / 17 Max. PV short‑circuit current per MPPT (A) 25 / 25 Compatible battery type Lithium‑ion / Lead‑Acid Rated battery voltage (V) 48 Battery voltage range (V) 38.4 – 60 Max. charge / discharge current (A) 140

  • Pure sine wave solar MPPT based inverter
  • Automatically assigns a primary unit for parallel
  • operation of up to 16 inverters
  • Maximum PV input power to 9600W
  • Touch Screen
  • Optimizes two solar arrays independently
  • Built-in dual output
  • Self-consumption and feed-in to grid
  • Built-in BMS & Wi-fi
  • Off-grid seamless switch
  • Separate generator port available

• Hybrid inverter (Solar + Battery + Grid + Generator)

• Power: 12.6KW (12600W)

• Max PV input: 24,000W

• Dual MPPT (4 strings)

• Pure sine wave output

• Battery: 48V (Lithium / Lead-Acid)

• Charging current: 250A

• Parallel support up to 16 units

• Generator auto start/stop

• Smart dual output system

• Wi-Fi monitoring + LCD display

• Heavy-duty design for commercial use

• Weight: approx. 40 kg

Technical Data :

 General

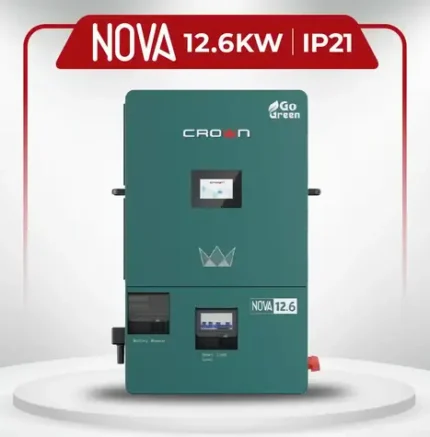

• Model: Nova 12.6KW

• Rated Power: 12600W / 12600VA

• Inverter Type: Hybrid (Solar + Battery + Grid)

• Phase: Single Phase

• Efficiency: Up to 93%

 AC Input

• Voltage: 230VAC

• Voltage Range: 90 – 280VAC

• Frequency: 50Hz / 60Hz

 AC Output

• Output Voltage: 230VAC

• Waveform: Pure Sine Wave

• Output Current: 54.8A

• Surge Power: 2× for 5 seconds

• Transfer Time: <10ms (UPS mode)

 Solar (PV Input)

• Max PV Power: 24000W

• MPPT Trackers: Dual MPPT (4 strings)

• MPPT Voltage Range: 120 – 400V

• PV Voltage Range: 90 – 450V

• Max PV Current: 36A + 36A

• Max PV VOC: ~500V

 Battery

• Battery Voltage: 48V

• Battery Type: Lithium / Lead-Acid

• Voltage Range: 46.4 – 58.4V

• Max Charging Current: 250A

• Max Discharging Current: 250A

 Charging

• Solar Charge Current: 250A

• AC Charge Current: Up to 250A

• Charging Efficiency: Up to 99%

Communication

• Interfaces: USB / RS232 / RS485 / Wi-Fi

• Monitoring: Mobile App + LCD

 Physical

       Dimensions: approx. 150 × 570 × 830 mm

• Weight: ~40 kg

• Protection: Advanced multi-protection system

 Environment

• Operating Temp: -10°C to 50°C

• Humidity: 5% – 95%

 Additional Features

• Auto generator start/stop

• Dual output (smart load + normal load)

• Parallel up to 16 units

• Battery-less operation supported

• Built-in breakers & protection

• Dual MPPT design with four strings, each MPPT supporting a maximum current of 36A

• • Maximum 24KW PV input
  • Auto generator start and stop control
  • Separate generator (GEN) port
  • Dual AC output ports for multiple load connections
  • Maximum charging & discharging current, 250A
  • PV or AC or generator wake up battery
  • Up to 19.2KW GEN/AC coupling input
  • Integrated design with load and battery breaker
  • Supports up to 16 units in parallel

• Three-phase on-grid solar inverter

• Power range: 15KW – 25KW

• Efficiency up to 98.6%

• Dual MPPT solar tracking

• Max DC voltage: 1100V

• Wide MPPT range (140V–1000V)

• IP66 waterproof & dustproof

• Wi-Fi / 4G monitoring support

• Transformer-less design

• Advanced safety protections

• Ideal for industrial & commercial use

• Weight: approx. 20.7 kg

Technical Data

 General

• Inverter Type: On-Grid (Grid-Tied)

• Phase: Three Phase (3/N/PE)

• Power Range: 15KW – 25KW

• Topology: Transformer-less

• Max Efficiency: 98.6%

• Euro Efficiency: up to 98.3%

 AC Output

• Nominal Voltage: 400V (3 Phase)

• Frequency: 50Hz / 60Hz

• Max Output Current:

  • 15KW → 23.9A

  • 20KW → 31.9A

  • 25KW → 39.9A

• Power Factor: 0.8 lead – 0.8 lag

• THD: <3%

 Solar (PV Input)

• Max DC Voltage: 1100V

• Nominal DC Voltage: 650V

• Start Voltage: 250V

• MPPT Voltage Range: 140V – 1000V

• MPPT Trackers: 2

• Strings per MPPT: 2

• Max Input Current: 30A per MPPT

• Short Circuit Current: 40A per MPPT

Communication

• Interfaces: RS485 / Wi-Fi / 4G

• Monitoring: Mobile App / Web Portal

• Display: LCD with touch pad

 Physical

• Dimensions: approx. 380 × 483 × 193 mm

• Weight: ~20.7 kg

• Protection Class: IP66

 Environment

• Operating Temperature: -25°C to +60°C

• Cooling: Fan Cooling

• Humidity: 0–100% (Non-condensing)

• Max Altitude: 4000m

 Protection Features

• Anti-islanding protection

• DC reverse polarity protection

• Overcurrent & short circuit protection

• Surge protection (Type II DC / AC)

• Insulation detection & fault monitoring

  Features

  • Ongrid three phase MPPT based inverter
  • AC grid frequency: 50Hz/60Hz
  • High efficiency: up to 98.6%
  • IP66 protection
  • DC switch, anti-islanding & over current protection
  • Wi-fi/4G plug optional
  • Max. PV voltage up to 1100
  • Compatible with all major types of PV panels
  • Type II DC/AC SPD

• Three-phase on-grid solar inverter

• Power range: 30KW – 40KW

• Efficiency up to 98.7%

• 3 MPPT trackers for maximum performance

• Max DC voltage: 1100V

• Wide MPPT range (200V–1000V)

• IP66 waterproof & dustproof

• Wi-Fi / 4G monitoring support

• Transformer-less design

• Industrial-grade performance

• Ideal for factories & large commercial projects

• Weight: approx. 25–32 kg

Technical Data

 General

• Inverter Type: On-Grid (Grid-Tied)

• Phase: Three Phase (3P + N + PE)

• Power Range: 30KW – 40KW

• Topology: Transformer-less

• Max Efficiency: 98.7%

• Euro Efficiency: 98.4%

 AC Output

• Nominal Voltage: 230/400V (3 Phase)

• Frequency: 50Hz / 60Hz

• Max Output Current:

  • 30KW → 47.8A

  • 40KW → 63.8A

• Power Factor: 0.8 lead – 0.8 lag

• THD: <3%

 Solar (PV Input)

• Recommended PV Power:

  • 30KW → 39KW

  • 40KW → 52KW

• Max DC Voltage: 1100V

• Nominal DC Voltage: 650V

• Start Voltage: 250V

• MPPT Voltage Range: 200 – 1000V

• MPPT Trackers: 3

• Strings per MPPT: 2

• Max Input Current: 30A per MPPT

• Short Circuit Current: 40A per MPPT

 Communication

• Interfaces: RS485 / Wi-Fi / 4G

• Monitoring: Mobile App / Web Portal

• Display: LCD

 Physical

• Dimensions: approx.

  • 30KW → 380 × 483 × 223 mm

  • 40KW → 380 × 483 × 227 mm

• Weight:

  • 30KW → ~25.5 kg

  • 40KW → ~32.5 kg

• Protection Class: IP66

 Environment

• Operating Temperature: -25°C to +60°C

• Cooling: Fan Cooling

• Humidity: 0–100% (Non-condensing)

• Max Altitude: 4000m

 Protection Features

• Anti-islanding protection

• DC reverse polarity protection

• Overcurrent & short circuit protection

• Surge protection (DC & AC)

• Insulation monitoring

  Features:

  • Ongrid three phase MPPT based inverter
  • AC grid frequency: 50Hz/60Hz
  • High efficiency: up to 98.6%
  • IP66 protection
  • DC switch, anti-islanding & over current protection
  • Wi-fi/4G plug optional
  • Max. PV voltage up to 1100
  • Compatible with all major types of PV panels
  • Type II DC/AC SPD
