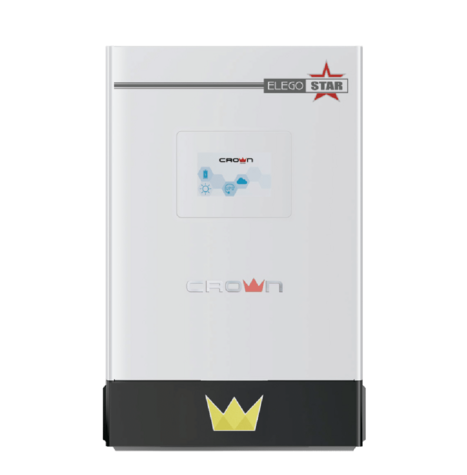

Crown Elego Star 6.5KW PV-9600

Model: PV-9600 (Crown Elego Star 6.5KW)
Rated Power: 6.5KW
Max PV Input: 9600W
Type: Hybrid Solar Inverter (Grid + Battery + Solar)
Waveform: Pure Sine Wave
MPPT: Dual MPPT (2 Inputs)
Monitoring: Built-in WiFi + Mobile App
Parallel Support: Yes (Expandable system)
Battery Support: Lithium & Lead-Acid
Display: Touch Screen LCD
Weight: Approx. 25–29 KG
RATED POWER : 6500 VA / 6500 W
Max. PV array power (W) 9600
Rated PV input voltage (V) 320
Number of independent MPPT inputs 2
PV input voltage range (V) 100 – 500
MPPT voltage range (V) 120 – 400
Start‑up voltage (V) 100
PV input current per MPPT (A) 17 / 17
Max. PV short‑circuit current per MPPT (A) 25 / 25
Compatible battery type Lithium‑ion / Lead‑Acid
Rated battery voltage (V) 48
Battery voltage range (V) 38.4 – 60
Max. charge / discharge current (A) 140
- Pure sine wave solar MPPT based inverter
- Automatically assigns a primary unit for parallel
- operation of up to 16 inverters
- Maximum PV input power to 9600W
- Touch Screen
- Optimizes two solar arrays independently
- Built-in dual output
- Self-consumption and feed-in to grid
- Built-in BMS & Wi-fi
- Off-grid seamless switch
- Separate generator port available

Add to wishlist

Compare

Add to wishlist

Categories: Solar Inverters, Solar Inverters I UPS & Batteries

Description

Crown Elego Star 6.5KW PV-9600 Hybrid Solar Inverter

Overview:

The Crown Elego Star 6.5KW PV-9600 is a high-performance hybrid solar inverter designed Crown Elego Star 6.5KW PV-9600 for modern residential and commercial energy systems. Built with advanced MPPT technology and intelligent energy management, this inverter efficiently converts solar energy into usable electricity while ensuring stable and uninterrupted power supply.

It supports grid-tie, off-grid, and hybrid operations, making it a versatile solution for areas with load shedding or unstable electricity. With dual MPPT inputs, built-in WiFi monitoring, and BMS integration, this inverter offers complete control over your solar system.

Powerful 6.5KW Output Performance:

This inverter delivers a rated output of 6.5KW, making it suitable for running heavy home appliances such as air conditioners, refrigerators, fans, lights, and office equipment simultaneously. It can also handle higher loads when combined with solar and battery input.

High PV Input Capacity (9600W)

The PV-9600 model supports up to 9600W solar input, allowing users to connect larger solar panel systems and maximize energy production. This ensures better performance even during low sunlight conditions.

Dual MPPT Technology:

Equipped with dual MPPT (Maximum Power Point Tracking), the inverter can manage two separate solar arrays independently. This increases efficiency and ensures optimal power generation throughout the day.

Hybrid Functionality (Grid + Solar + Battery)

The inverter intelligently combines:

Solar panels
Utility grid
Battery storage

It can automatically switch between power sources, ensuring continuous electricity without interruption, especially during load shedding.

Smart Monitoring & WiFi Connectivity:

With built-in WiFi and monitoring software, users can track:

Real-time power generation
Battery status
Load consumption

This feature allows full system control via mobile or PC.

Parallel Operation & Expandability:

The inverter supports parallel connection of multiple units (up to 9–16 units depending on setup), making it ideal for expanding solar systems in the future.

Advanced Protection & Safety Features:

Overload & short circuit protection
Over-voltage & surge protection
Battery reverse polarity protection
Smart cooling system
Pure sine wave output for sensitive electronics

These features ensure long-term durability and safe operation.

User-Friendly Design:

Touch screen LCD display
Easy configuration settings
Dual output for smart load management
Generator compatibility

This makes the inverter easy to install, operate, and maintain.

Applications:

Homes and apartments
Shops and offices
Small commercial setups
Backup power systems
